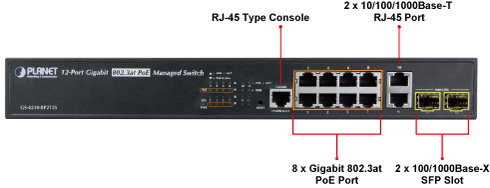

Planet GS-4210-8P2T2S front panel
Planet GS-4210-8P2T2S Managed Gigabit PoE Network Switch

Planet

Planet GS-4210-8P2T2S Managed Gigabit PoE Network Switch

Sale price$300.00
Discontinued
SKU: GS-4210-8P2T2S

Usually Ships in 10 - 12 days

Contact

Product End of Life (EOL)

Planet GS-4210-8P2T2S Features

Hardware Specifications

  • Ethernet Ports: 10 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports, 2 x 100/1000Base-X SFP interfaces with Port-11 to Port-12 supports 100/1000Mbps dual mode and DDM
  • PoE Ports: 8 ports with 802.3at / af PoE injector function with Port-1 to Port-8
  • Switch Throughput: 17.76Mpps @64 bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: AC 100~240V, 50/60Hz, auto-sensing
  • Power Consumption: 320 watts (max.) / 1091.8 BTU
  • LED Display: PWR, SYS, LNK/ACT, PoE In-Use, 1000
  • Dimension (W x D x H): 330 x 200 x 44.5 mm, 1000 1U height
  • Weight: 2 kg (4.41 lb)
  • Operating Temperature: 0 ~ 50 degrees C; 5 ~ 95% RH (non-condensing)

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af / 802.3at PoE / PSE
  • PoE Power Supply Type: End-span
  • PoE Power Output: Per port 56V DC, 30.8 watts (max.)
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 240 watts (max.) @ 25 degrees C, 200 watts (max.) @ 50 degrees C
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: See datasheet

Planet GS-4210-8P2T2S Overview

The GS-4210-8P2T2S is the new generation of PLANET Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 8 10/100/1000Base-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000Base-X SFP fiber slots. Each of the eight Gigabit ports provides 30 watts of power, which means a total power budget of up to 240 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
