Planet GS-4210-8P2S

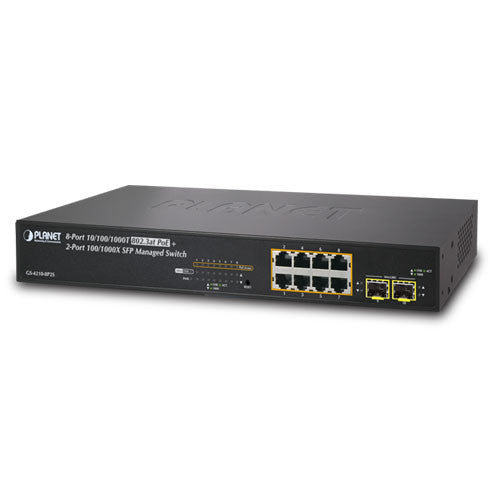

Planet GS-4210-8P2S 8 Port Managed Gigabit PoE Network Switch

Planet

Planet GS-4210-8P2S 8 Port Managed Gigabit PoE Network Switch

Sale price$244.00
SKU: GS-4210-8P2S

Usually Ships in 10 - 12 days

Quantity:

Contact

Planet GS-4210-8P2S Features

Hardware Specifications

  • Ethernet Ports: 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port, 2 x 100/1000BASE-X SFP interface supports 100/1000Mbps dual mode and DDM
  • PoE Ports: 8 ports with 802.3at / af PoE injector function with port-1 to port-8
  • Switch Throughput: 14.88Mpps @64 bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: AC 100~240V, 50/60Hz, auto-sensing
  • Power Consumption: 165 watts (max.) / 563 BTU
  • LED Display: PWR, LNK/ACT, PoE-in-use, 1000, fan alert
  • Dimension (W x D x H): 330 x 155 x 43.5 mm, 1U height
  • Weight: 1687 g (3.72 lb)
  • Operating Temperature: 0 ~ 50 degrees C; 5 ~ 95% RH (non-condensing)

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af / 802.3at PoE+ PSE
  • PoE Power Supply Type: End-span
  • PoE Power Output: Per port 52V DC, 36 watts (max.)
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 120 watts (max.) @ 25 degrees C, 100 watts (max.) @ 50 degrees C
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: See datasheet

Planet GS-4210-8P2S Overview

PLANET GS-4210-8P2S is a cost-optimized, desktop-size Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 2 additional Gigabit SFP slots. With a total power budget of up to 120 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
