CyberPower OL6KRTHD 6KVA/6KW, High Density, Online Double-Conversion, PF=1, 2U rack/tower

Sale price$5,234.95
SKU: OL6KRTHD
Quantity:

Contact

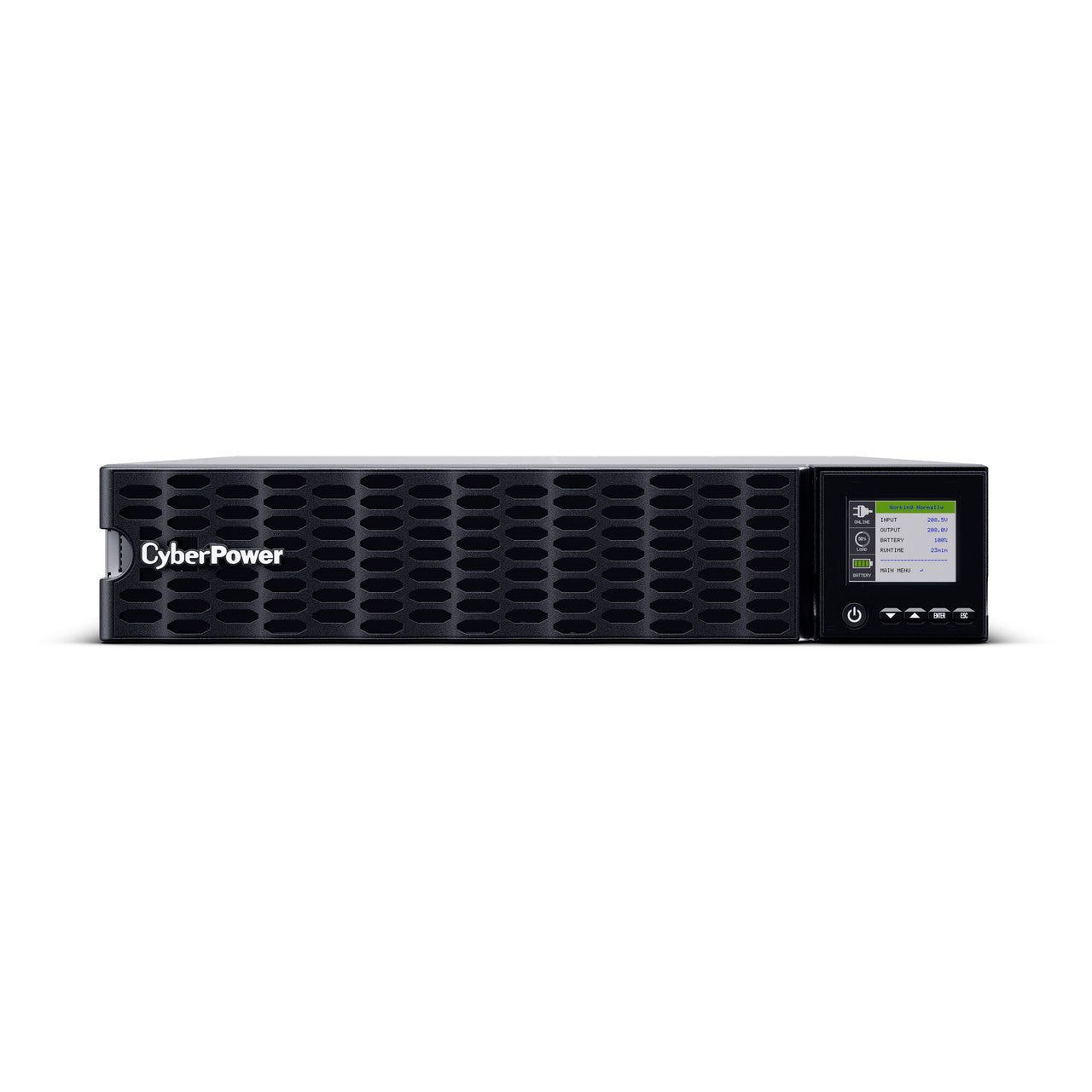

The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models – giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it’s all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

Double-Conversion Topology

  • Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output

  • Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Full Matrix LCD Control Panel

  • Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.

Tool-less Front Panel

  • Tool-less front panel removal makes battery replacement easier.

Hot-Swappable Batteries

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Extended Battery Module (EBM)

  • Extends runtime by adding up to 10 EBMs.

Smart Battery Management (SBM)

  • Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle chargingprocess.

Battery Equalization Technology

  • Battery Equalization is an advanced charging process that maintains the
  • voltages of the batteries at the same level to increase battery life.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by
  • utilizing a built-in charger. Restores charge from 0-90% within four
  • hours regardless of the number of EBMs.

PowerPanel® Business Software

  • Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205

  • Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

Hanging Rack Mount Rail

  • Ensures easy installation and slides out safely with a safety catch.

Tamper-Proof Input Circuit Breaker

  • Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.

EMI/RFI Filters

  • Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Energy Star Certified & GreenPower UPS™ ECO Mode

  • Improves UPS efficiency up to 96% reducing electrical and cooling costs.

Upgradeable UPS Firmware

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Multiple Language Options

  • The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.

Critical & Non-Critical Load Banks

  • Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.

Emergency Power Off (EPO)

  • Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible

  • Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode

  • Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB & Serial Connectivity

  • Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

Audible Alarms

  • Identifies when the UPS is running on battery power, overloaded, or has a low battery.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

Three-Year Warranty

  • Gives you peace of mind knowing we will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

  • Affirms we will replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, Installation and Operation Manual, Quick Start Guide,
Registration Warranty Card, PowerPanel Management Software Download Card,
Input terminal block cover & NEMA L6-30P Power Cord, Rackmount left
rail, Rackmount right rail, Left hanging bracket, Right hanging bracket,
Serial Interface Cable (RS-232), USB communication cable, 2 x Rackmount
ears, 8 x Flat head screws M5X7L, 12 x Pan head screws M5X12L, 6 x Pan head
screws M5X6L, 8 x Plastic washers, 18 x Screw hole dust covers, 12 x Rubber
pads, 2 x Stand, Input bottom cover, Screwdriver


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Energy Saving Yes – ECO Mode Efficiency >96%
Energy Star Certified Yes
UPS Topology Double Conversion
Battery
Battery Equalization Technology Yes
Battery Quantity 12
Battery Size 12V/6Ah
Battery Type Sealed lead acid
Extended Battery Module Option BP144VL2U01
Hot Swappable Yes
Replacement Battery (1) RB1260X12
Runtime at Full Load (min) 1.4
Runtime at Half Load (min) 4.9
Smart Battery Management (SBM) Mode Yes
Typical Recharge Time 4 Hours (0-90%)
User Replaceable Yes – Qualified Personnel Only
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.64 x 71.88 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.4 x 28.3 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 86 x 719 (mm)
Weight (kg) 41.91
Weight (lb) 92.4
Dimensions – Shipping
Shipping – Weight (kg) 51.98
Shipping – Weight (lb) 114.6
Shipping Dimensions – (WxHxD) (cm) 59.94 x 21.59 x 109.98 (cm)
Shipping Dimensions – (WxHxD) (in) 23.6 x 8.5 x 43.3 (in)
Shipping Dimensions – (WxHxD) (mm) 599.44 x 215.9 x 1099.82 (mm)
Input
Backfeed Protection Yes
Cold Start Yes
Cord Length (ft) 10
Cord Length (m) 3
Input Frequency Range 40Hz-70Hz (auto-sensing)
Input Power Factor 0.99
Input Voltage 200-240VAC
Input Voltage Range 120-139VAC for 0-25% Load
140-159VAC for 0-50% Load
160-179VAC for 0-75% Load
180-280VAC for 0-100% Load
Plug Type Hardwire with NEMA L6-30P Power Cord Option
Output
Bypass Internal Bypass (Automatic and Manual)
Crest Factor 3:1
ECO Mode Bypass Voltage Range ±10%, ±15% (Configurable)
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
On Battery Frequency 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
On Battery Voltage 200, 208, 220, 230, 240Vac (Configurable) ±2%
On Battery Waveform Sine wave
Outlet Type (2) NEMA L6-20R, (2) NEMA L6-30R
Outlets – Total 4
Overload Protection Line Mode:
105~125% Load for 1 min
126~150% Load for 10 sec
Battery Mode:
105~130% Load for 10 sec
131~150% Load for 2 sec
Rated Power Factor 1
Short Circuit Protection UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Transfer Time 0ms
VA 6,000 (6 kVA) →w/ Hardwire Terminal
5,400 (5.4 kVA) – 240VAC →w/ Power cord
5,400 (5.4 kVA) – 230VAC →w/ Power cord
5,100 (5.1 kVA) – 220VAC →w/ Power cord
4,850 (4.85 kVA) – 208VAC →w/ Power cord
4,500 (4.5 kVA) – 200VAC →w/ Power cord
Watts 6,000 (6 kW) →w/ Hardwire Terminal
5,400 (5.4 kW) – 240VAC →w/ Power cord
5,400 (5.4 kW) – 230VAC →w/ Power cord
5,100 (5.1 kW) – 220VAC →w/ Power cord
4,850 (4.85 kW) – 208VAC →w/ Power cord
4,500 (4.5 kW) – 200VAC →w/ Power cord
Surge Protection & Filtering
EMI/RFI Filtration Yes
Surge Suppression 2430 Joules, per IEC 61000-4-5 Level 3
Management & Communications
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault
Auto Rotatable LCD Control Panel Option Yes
Dry Contacts No
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LCD Control Panel Multi-Function Color TFT-LCD Readout that Supports:
(15) Types of UPS status, (7) Types of Controls, (20) Types of Set Up,
(12) Event Logs, (11) Types of About, (4) Types of Diagnostics
LED Indicators Power On (White)
Management Cable USB cable, Serial cable
Removable LCD Control Panel Option No
SNMP / HTTP Remote Monitoring Yes – RMCARD205 pre-installed
Serial Port Yes
Software PowerPanel Business Edition
Physical
Material of Construction Metal
Form Factor Rack / Tower Convertible (Rotatable LCD)
Mounting Hardware Included Yes
Rack Height 2U
Environmental
Audible noise at 1m from surface of unit 43 dBA to 66 dBA (0% to 100% load)
Operating Elevation 0-10000 feet (0-3000 meters)
Operating Relative Humidity 0% – 90% non condensing
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Elevation 0-50000 feet (0-15000 meters)
Storage Relative Humidity 0% – 95% non condensing
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
UPS Online Thermal Dissipation (100% load) 1613 BTU/hr
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Warranty
CEG Amount $300,000
Connected Equipment Guarantee Lifetime
Extended 2-Year Warranty Optional WEXT5YR-U20B
Product Warranty 3 Years Limited
