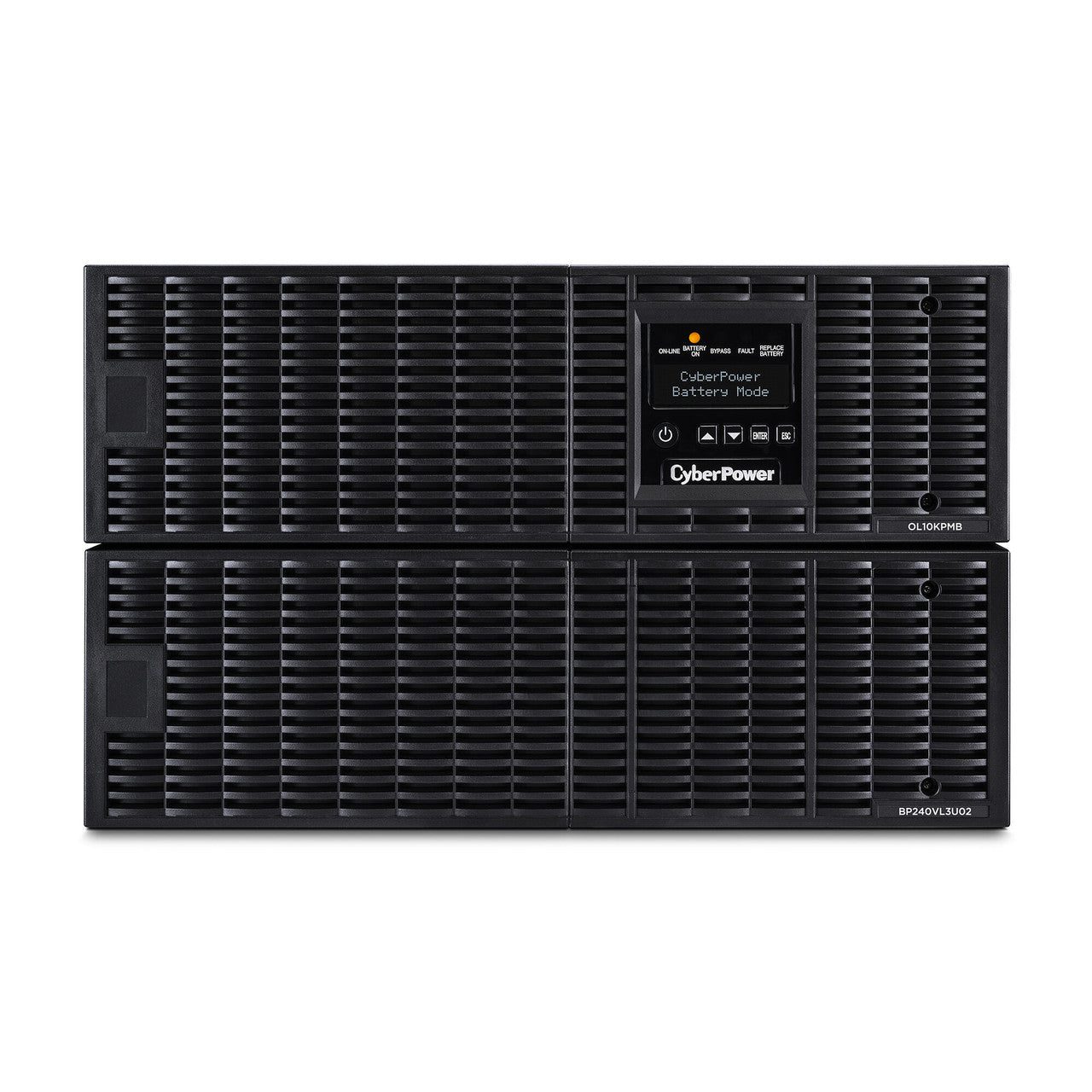

CyberPower OL10KRTMB 10KVA/10KW, online double-conversion UPS, PF=1, 6U rack/tower convertible

Sale price$6,199.88
SKU: OL10KRTMB
Quantity:

Contact

The CyberPower Smart App Online OL10KRTMB is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL10KRTMB enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL10KRTMB simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL10KRTMB comes with a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

Double-Conversion Topology

  • Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output

  • Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Maintenance Bypass Switch

  • Service or replace the UPS easily without powering down the connected equipment. The patented interlock bracket utilizes a color-coded security screw to simplify and reduce time for maintenance or module replacement.

PowerPanel® Business Edition Software

  • Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205

  • Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

LCD Control Panel

  • Displays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.

Multiple Language Options

  • The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.

Extended Battery Module (EBM)

  • Extends runtime by adding up to 10 EBMs.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within five hours regardless of the number of EBMs.

Smart Battery Management (SBM)

  • Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS™ ECO Mode

  • Improves UPS efficiency up to 96% reducing electrical and cooling costs.

Hot-Swappable Batteries

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Upgradeable UPS Firmware

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Hanging Rack Mount Rail

  • Ensures easy installation and slides out safely with a safety catch.

Tamper-Proof Input Circuit Breaker

  • Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.

Critical & Non-Critical Load Banks

  • Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.

Emergency Power Off (EPO)

  • Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible

  • Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode

  • Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB & Serial Connectivity

  • Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

EMI/RFI Filters

  • Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Data-Line Surge Protection

  • Prevents power surges traveling through telephone and Ethernet lines from causing damage to your equipment.

Audible Alarms

  • Identifies when the UPS is running on battery power, overloaded, or has a low battery.

LED Status Lights

  • Indicates Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

Three-Year Warranty

  • Gives you peace of mind knowing we will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

  • Affirms we will replace properly connected equipment if it is damaged by a power surge.

WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Energy Saving Yes – ECO Mode Efficiency up to 97%
Nominal Voltage 200 V to 240 V
UPS Topology Double Conversion
Battery
Battery Quantity 20
Battery Size 12 V/9 Ah
Battery Type Sealed lead acid
Extended Battery Module Optional BP240VL3U01
Hot Swappable Yes
Replaceable Battery Yes
Replacement Battery (2) RB1290X10
Replacement Battery Cartridge Quantity 2
Runtime at Full Load 3.6 min
Runtime at Half Load 10 min
Smart Battery Management (SBM) Mode Yes
Typical Recharge Time 5 h (0% to 90%)
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.31 x 26.42 x 82.04 (cm)
Physical Dimensions – (WxHxD) (in) 17.05 x 10.4 x 32.3 (in)
Physical Dimensions – (WxHxD) (mm) 433 x 264 x 820 (mm)
Rack Units 6U
Rail Depth – Max. Mounting (in) 36.02
Rail Depth – Max. Mounting (mm) 915
Rail Depth – Min. Mounting (in) 20.47
Rail Depth – Min. Mounting (mm) 520
Weight (kg) 106.28
Weight (lb) 234.3
Dimensions – Shipping
Shipping – Weight (kg) 133.22
Shipping – Weight (lb) 293.7
Shipping Dimensions – (WxHxD) (cm) 61.98 x 65.02 x 112.01 (cm)
Shipping Dimensions – (WxHxD) (in) 24.4 x 25.6 x 44.1 (in)
Shipping Dimensions – (WxHxD) (mm) 619.76 x 650.24 x 1120.14 (mm)
Dimensions – Maintenance Bypass Module
Maintenance Bypass Module – Dimensions (WxHxD, in) 7.8 x 10.4 x 6.3
Maintenance Bypass Module – Dimensions (WxHxD, mm) 198 x 264 x 160
Maintenance Bypass Module – Rack Units 6U
Maintenance Bypass Module – Weight (kg) 5.9
Maintenance Bypass Module – Weight (lb) 13
Dimensions – Battery Module
Battery Module – Dimensions (WxHxD, in) 17.05 x 5.2 x 26
Battery Module – Dimensions (WxHxD, mm) 433 x 132 x 660
Battery Module – Rack Units 3U
Battery Module – Weight (kg) 78
Battery Module – Weight (lb) 171.6
Dimensions – Power Module
Power Module – Dimensions (WxHxD, in) 17 x 5.2 x 26
Power Module – Dimensions (WxHxD, mm) 433 x 132 x 660
Power Module – Rack Units 3U
Power Module – Weight (kg) 24
Power Module – Weight (lb) 52.8
Input
Backfeed Protection Yes
Cold Start Yes
Frequency Range 40 Hz to 70 Hz (auto-sensing)
Input Power Factor 0.99
Plug Type Hardwire
Voltage Range 121 V to 139 V, 0% to 25% load
140 V to 159 V, 0% to 50% load
160 V to 179 V, 0% to 75% load
180 V to 280 V, 0% to 100% load
Output
Bypass Internal Bypass (Automatic and Manual), Maintenance Bypass
Crest Factor 3:1
ECO Mode Bypass Voltage Range ±10%, ±15% (configurable)
Harmonic Distortion <3% at linear load, <5% at non-linear load
Maintenance Bypass Yes
Nominal Voltage (Battery Mode) 200, 208, 220, 230, 240 V ±2% (configurable)
Outlet Type (2) NEMA L6-20R, (4) NEMA L6-30R, (1) Hardwire Terminal Block
Outlets – Total 7
Output Frequency 50/60 Hz ±0.25 Hz (auto-sensing/configurable)
Output Power Factor 1
Overload Protection Line Mode:
105% to 125% load for 1 min
126% to 150% load for 10 s
Battery Mode:
105% to 130% load for 10 s
131% to 150% load for 2 s
Rated Power Factor 1
Short Circuit Protection UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Transfer Time 0 ms
VA 10,000 (10 kVA)
Watts 10,000 (10 kW)
Waveform (Battery Mode) Sine wave
Surge Protection & Filtering
EMI/RFI Filtration Yes
Phone / Network Surge Protection RJ11/RJ45 1-In / 1-Out (Combo)
Surge Protection 2430 Joules, IEC 61000-4-5 Level 3
Management & Communications
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault
Cables Included USB cable, serial cable, phone cable
Dry Contact Port Yes
Emergency Power Off (EPO) Port Yes
Expansion Slot Yes – RMCARD205 pre-installed
HID Compliant USB Port Yes
LCD Control Panel Access 51 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu.
LED Indicators Power On (White)
Line Mode (Green)
Battery Mode (Yellow)
Bypass Mode (Yellow)
Fault (Red)
Replace Battery (Red)
Management Cable USB cable, Serial Cable, Phone line
Removable LCD Control Panel Option Yes – Requires DB26 cable (not included)
Rotatable LCD Control Panel Option Yes
SNMP / HTTP Remote Monitoring Yes – RMCARD205 pre-installed
Serial Port Yes
Software PowerPanel® Business Edition
Physical
Color Black
Enclosure Construction Steel
Form Factor Rack / Tower convertible (rotatable LCD)
Mounting Hardware Included Yes
Rack Mounting Hardware Included
Environmental
Audible noise at 1m from surface of unit 38 dBA to 65 dBA (0% to 100% load)
ECO Mode Thermal Dissipation (100% Load) 1019 BTU/h
Operating Elevation 0 ft to 10,000 ft (0 to 3,000 m)
Operating Relative Humidity 0% to 90% non-condensing
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Storage Elevation 0 ft to 50,000 ft (0 m to 15,000 m)
Storage Relative Humidity 0% to 95% non-condensing
Storage Temperature -4 °F to 113 °F (-20 °C to 45 °C)
UPS Online Thermal Dissipation (100% load) 3211 BTU/h
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Warranty
CEG Amount 300000
Connected Equipment Guarantee Lifetime
Extended 2-Year Warranty Optional WEXT5YR-U20C
Product Warranty 3 Years Limited
