CyberPower OL10KRTHW 10KVA/10KW, online double-conversion UPS, maintenance bypass switch

Sale price$6,375.10
SKU: OL10KRTHW
Quantity:

Contact

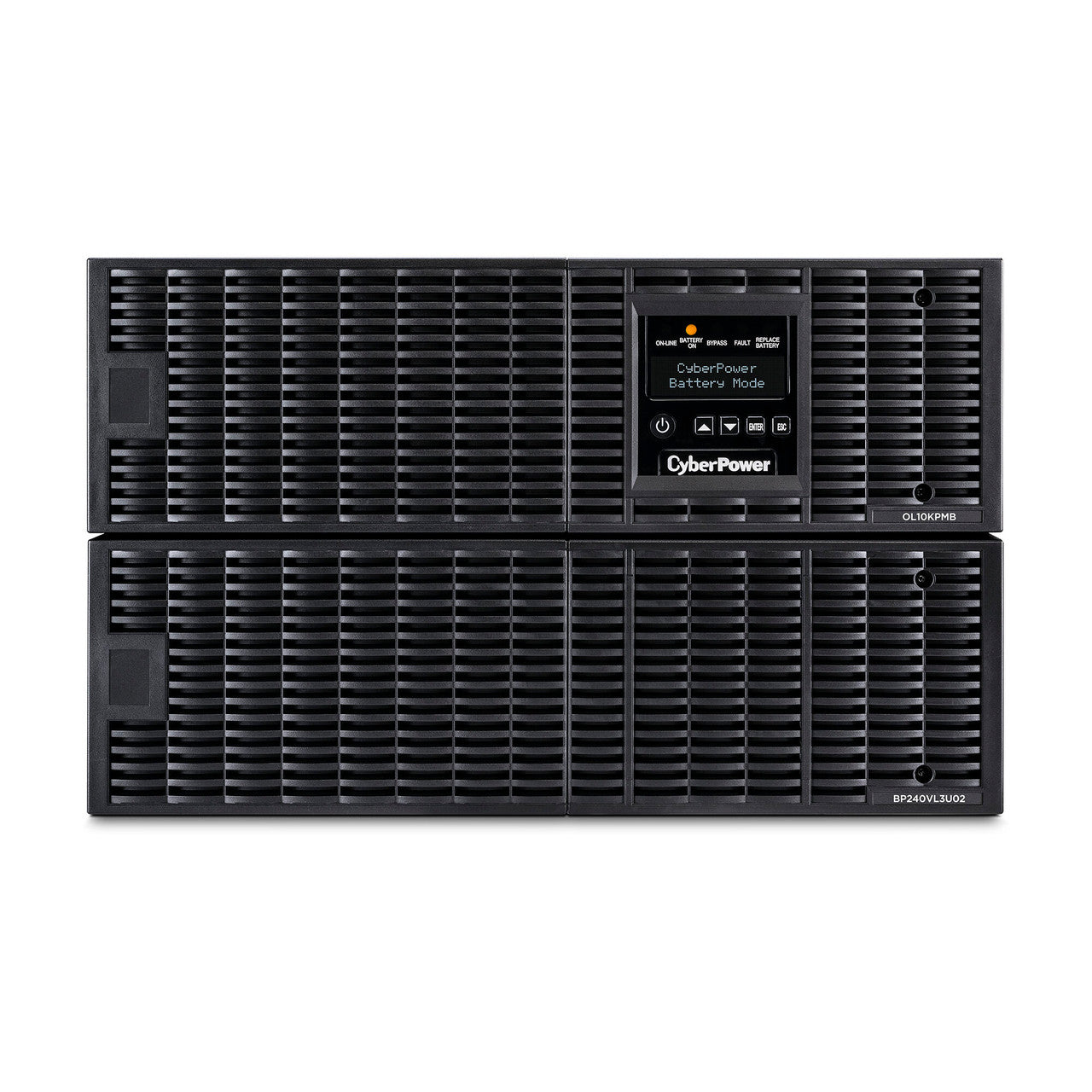

The CyberPower Smart App Online OL10KRTHW is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL10KRTHW enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL10KRTHW simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL10KRTHW comes with a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

Double-Conversion Topology

  • Provides consistent, clean, and nearly perfect power, regardless of
  • the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic
  • devices.

Sine Wave Output

  • Keeps sensitive equipment with Active PFC working by preventing
  • unnecessary shutdowns caused by gaps from simulated sine waves.

Maintenance Bypass Switch

  • Service or replace the UPS easily without powering down the connected equipment. The patented interlock bracket
  • utilizes a color-coded security screw to simplify and reduce time for maintenance or module replacement.

PowerPanel® Business Edition Software

  • Provides tools for easy remote monitoring and managing of the UPS and
  • automates shutdown of multiple devices when needed.

RMCARD205

  • Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS)
  • connection.

LCD Control Panel

  • Displays UPS status data and configures operating settings
  • from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP
  • address settings when an RMCARD205 is installed.

Multiple Language Options

  • The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.

Extended Battery Module (EBM)

  • Extends runtime by adding up to 10 EBMs.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge
  • from 0-90% within five hours regardless of the number of EBMs.

Smart Battery Management (SBM)

  • Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by
  • using a three-cycle charging process.

GreenPower UPS™ ECO Mode

  • Improves UPS efficiency up to 96% reducing electrical and cooling costs.

Hot-Swappable Batteries

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Upgradeable UPS Firmware

  • Keeps equipment running by eliminating downtime during UPS power maintenance.

Hanging Rack Mount Rail

  • Ensures easy installation and slides out safely with a safety catch.

Tamper-Proof Input Circuit Breaker

  • Ensures power is turned off using a tool to eliminate the risk of accidental
  • powering off when not desired during service or maintenance.

Critical & Non-Critical Load Banks

  • Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for
  • critical load outlets.

Emergency Power Off (EPO)

  • Allows the UPS to be shut off in the
  • event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible

  • Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when
  • running on generator input power.

Converter Mode

  • Provides the flexibility to set the
  • output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz
  • output on the LCD control panel.

USB & Serial Connectivity

  • Enables full integration with
  • built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a
  • HID-compliant USB port and Serial port.

EMI/RFI Filters

  • Prevents electromagnetic and radio
  • frequency interference to ensure clean power for connected equipment.

Data-Line Surge Protection

  • Prevents power surges traveling through telephone and Ethernet lines from causing damage to your equipment.

Audible Alarms

  • Identifies when the UPS is running on battery power, overloaded, or has a low battery.

LED Status Lights

  • Indicates Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

Rack/Tower Versatility Allows for horizontal rack or vertical tower installation.
Three-Year Warranty

  • Gives you peace of mind knowing we will repair or replace a defective UPS system
  • (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

  • Affirms we will replace properly connected equipment if it is damaged by a
  • power surge.
What’s In The Box

Power module; Extended Battery Module (EBM); 3U Maintenance Bypass Switch Module for OL6KRTHW, OL8KRTHW, and OL10KRTHW models; Rackmounts x 2 (2 Sets); Hanging bracket x 2 (2 Sets) Phone line; USB communication cable; Serial Interface Cable (RS-232); NEMA L6-30R to IEC-320-C13 power cord; Quick Start Guide; Safety instruction; Registration warranty card; PowerPanel Management software download card; Rackmount ears x 4; Tie plate; Flat head screws M5X7L x 16; Pan head screws M5X12L x 24; Pan head screws M5X6L x 12; Plastic washers x 16; Screw hole dust covers x 28; Rubber pads x 24

PowerPanel Business software download available here.


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
UPS Topology Double Conversion
Energy Saving Yes – ECO Mode Efficiency >97%
Input
Nominal Voltage 200 V to 240 V
Voltage Range 120 V to 139 V for 0 to 25% Load

140V to 159 V for 0 to 50% Load

160V to 179 V for 0 to 75% Load

180V to 280 V for 0 to 100% Load

Frequency Range 40Hz-70Hz (auto-sensing)
Power Factor 0.99
Cold Start Yes
Backfeed Protection Yes
Plug Type Hardwire
Output
VA 10,000 (10 kVA)
Watts 10,000 (10 kW)
Waveform (Battery Mode) Sine wave
Nominal Voltage (Battery Mode) 200, 208, 220, 230, 240 V ±2% (Configurable)
Frequency 50/60 Hz ±0.25 Hz (Auto-Sensing or Configurable)
Power Factor 1
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
Crest Factor 3:1
ECO Mode Bypass Voltage Range ±10%, ±15% (Configurable)
Outlets – Total 1
Outlets – Type (1) Hardwire Terminal Block
Overload Protection Line Mode:
105% to 125% Load for 1 min
126% to 150% Load for 10 s
Battery Mode:
105% to 130% Load for 10 s
131% to 150% Load for 2 s
Short Circuit Protection UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Bypass Internal Bypass (Automatic and Manual), Maintenance Bypass
Maintenance Bypass Yes
Transfer Time 0 ms
Battery
Runtime at Half Load 10 min
Runtime at Full Load 3.6 min
Battery Type Sealed lead acid
Battery Size 12V/9Ah
Battery Quantity 20
Replaceable Yes
Hot Swappable Yes
Typical Recharge Time 5 h (0% to 90%)
Smart Battery Management (SMB) Mode Yes
Extended Battery Module Optional BP240VL3U01
Replacement Battery (2) RB1290X10
Surge Protection & Filtering
Surge Protection 2430 Joules, IEC 61000-4-5 Level 3
Phone / Network Surge Protection RJ11/RJ45 1-In / 1-Out
EMI/RFI Filtration Yes
Management & Communications
LCD Control Panel Access 50 information status and configuration settings via the
Information and Configuration Menus, in addition to an Event Log Menu.
Rotatable LCD Control Panel Option Yes
Removable LCD Control Panel Option Yes – Requires DB26 cable (not included)
HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
Dry Contact Port Yes
Cables Included USB cable, Serial Cable
LED Indicators Power On (White)

Line Mode (Green)

Battery Mode (Yellow)

Bypass Mode (Yellow)

Fault (Red)

Replace Battery (Red)

Audible Alarms Battery Mode

Battery Low

Overload

UPS Fault

Software PowerPanel Business Edition
Expansion Slot Yes – RMCARD205 preinstalled
Physical
Form Factor Rack / Tower Convertible (Rotatable LCD)
Enclosure Contruction Steel
Color Black
Rack Mounting Hardware Included
Rack Units 6U
Weight (lbs) 229.9
Weight (kg) 104.5
Dimensions (WxHxD) (in.) 17.05 x 10.4 x 32.3
Dimensions (WxHxD) (mm.) 433 x 264 x 820
Max. Mounting Rail Depth (in.) 36.02
Max. Mounting Rail Depth (mm) 915
Min. Mounting Rail Depth (in.) 20.47
Min. Mounting Rail Depth (mm) 520
Physical Size – Power Module
Dimensions (WxHxD) (in.) 17.05 x 5.2 x 26
Dimensions (WxHxD) (mm.) 433 x 132 x 660
Rack Units 3U
Weight (lbs) 52.8
Weight (kg) 24
Physical Size – Maintenance Bypass Module
Dimensions (WxHxD) (in.) 17.05 x 5.2 x 26
Dimensions (WxHxD) (mm.) 433 x 132 x 660
Rack Units 3U
Weight (lbs) 171.6
Weight (kg) 78
Physical Size – PDU Module
Dimensions (WxHxD) (in.) 7.8 x 5.2 x 6.3
Dimensions (WxHxD) (mm.) 198 x 132 x 160
Rack Units 3U
Weight (lbs) 4.9
Weight (kg) 2.2
Shipping Dimensions
Dimensions (WxHxD) (in.) 24.4 x 25.6 x 44.1
Dimensions (WxHxD) (mm.) 620 x 650 x 1120
Weight (lbs) 289.3
Weight (kg) 131.19
Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 0% to 90% non condensing
Operating Elevation 0 ft to 10,000 ft (0 m to 3,000 m)
Storage Temperature -4°F to 113°F (-20°C to 45°C)
Storage Relative Humidity 0% to 95% non condensing
Storage Elevation 0 ft to 50,000 ft (0 m to 15,000 m)
UPS Online Thermal Dissipation (100% Load) 3211 BTU/hr
UPS ECO Mode Thermal Dissipation (100% Load) 1019 BTU/hr
Audible noise at 1 m from surface of unit 38 dBA to 65 dBA (0% to 100% load)
Certifications
Safety UL 1778 5th Ed.

CSA C22.2 NO.107.3-05

FCC Part 15 Class A

Environmental ROHS Compliant
Warranty
Product Warranty 3 Years Limited
Extended 2-Year Warranty Optional WEXT5YR-U20C
Connected Equipment Guarantee Lifetime
CEG Amount $300,000
